Mechanical Base Valve Meter EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90
The mechanical compact base valve meter, type EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90, combines precise water consumption measurement with an exceptionally space-saving and elegant design. Developed for direct installation on concealed and apartment shut-off valves, it provides an economical and future-proof solution for consumption-based water billing in residential buildings. Thanks to its compact construction, easy installation and the option of being integrated into modern remote meter reading systems at a later stage, the type EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90 meets the highest standards of functionality, quality and flexibility.
A particular feature is the shut-off device harmoniously integrated into the fitting. Together with the meter head, it forms a visually appealing and technically sophisticated unit that blends discreetly into any sanitary installation. On request, the type EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90 is also available in a high-quality chrome-plated version, making it particularly suitable for exposed installations in sanitary areas.
The quick installation of the EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90 saves time and costs
The EMS compact base valve meter EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90 has been specifically designed for simple and cost-effective installation. The existing shut-off valve can be replaced with the EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90 in just a few steps, significantly reducing installation time. Particularly during renovation projects or the scheduled replacement of existing water meters, this results in considerable time savings for installation companies and metering service providers.
Available in three common connection sizes, the EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90 can be easily adapted to existing installations. This keeps additional modification work to a minimum.
Maximum flexibility for existing installations
Not every installation complies with today’s standards. For this reason, the base valve meter EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90 has been designed to adapt easily to challenging installation conditions.
If an existing concealed valve has been installed contrary to the intended direction of flow, this can be corrected easily using a flow-direction converter. No extensive chiseling or opening of the wall is required. This also allows older installations to be modernized economically.
If additional spacing is required due to structural conditions, a suitable valve meter extension is available. It allows the fitting to be extended in 25 mm increments. This means that the valve meter can be optimally adapted to a wide range of installation conditions. For larger offsets, the use of a suitable 90 mm connection set is recommended.
Convenient reading from any position
For particularly convenient consumption monitoring, the valve meter features a meter head that can be rotated through 360° around three axes. This allows consumption values to be read conveniently at any time, regardless of the installation position and without awkward bending or stretching. This makes both manual meter reading and maintenance work considerably easier.
How is the EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90 compact base valve meter installed?
The installation of the EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90 base valve meter is particularly straightforward and can be completed in a short time. First, the water supply is shut off and the pressure in the pipe is released. The existing shut-off valve is then fully opened so that the valve spindle is in its end position. The valve top is then unscrewed from the valve body in just a few simple steps.
Instead of the existing valve top, the EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90 valve meter is now installed and securely screwed onto the existing valve body. Since the existing valve body remains in the installation, no extensive modifications to the pipework are required. After installation, the water supply is reopened, the installation is checked for leaks, and the valve meter is immediately ready for operation.
Thanks to this well-designed replacement principle, the EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90 valve meter can be retrofitted quickly, cleanly and cost-effectively. There is no need to open walls or remove tiles, and extensive installation work is eliminated. This makes the valve meter ideal for modernizing existing drinking water installations while providing an elegant and efficient solution for subsequent water consumption measurement.

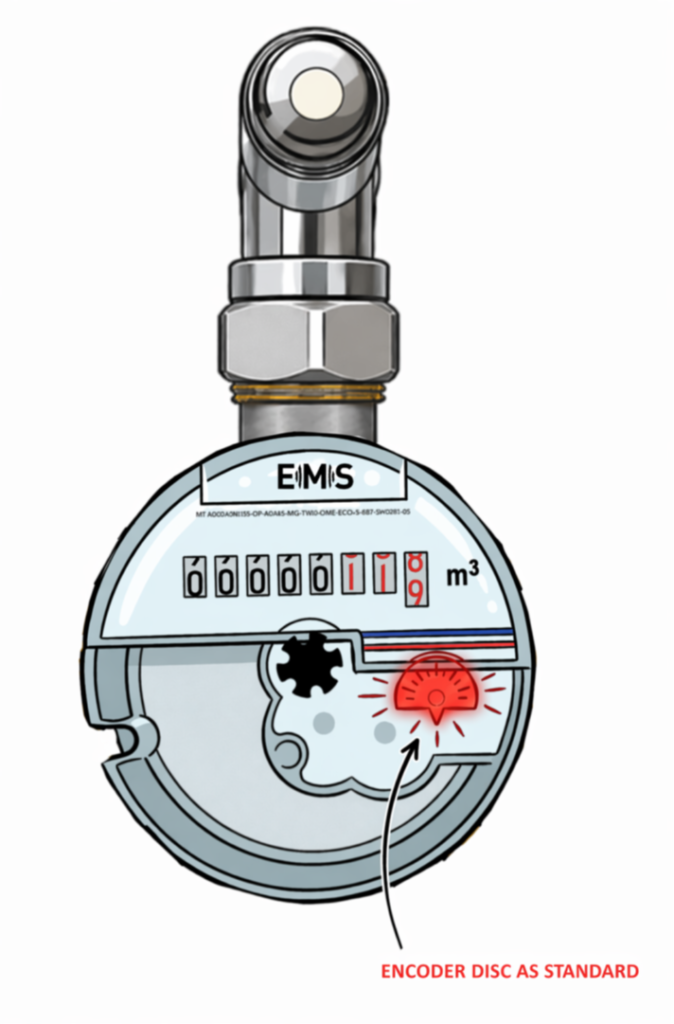

The EMS compact base valve meter EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90 comes as standard ready for retrofitting with radio, M-Bus or pulse modules. This means that the water meter can be integrated into modern remote reading systems at any time without having to replace the entire meter. This modular expandability protects existing investments and enables flexible adaptation to future requirements in building services and metering technology.
Whether in new-build projects, renovation projects or multi-unit residential developments, the EMS Compact Base Valve Meter EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90 impresses with its compact design, ease of installation and versatile expansion options for a wide range of communication technologies. It offers installers, residential developers and metering service providers a durable, cost-effective and visually appealing solution for precise water consumption measurement.

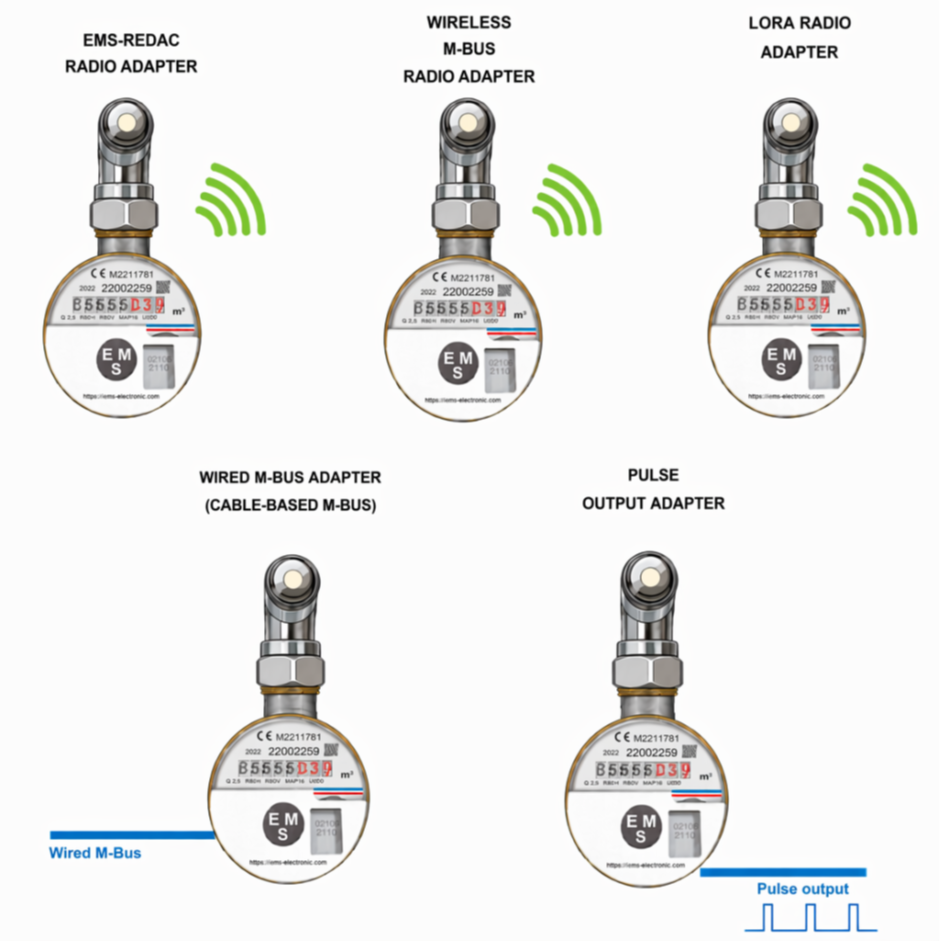

- Retrofittable with EMS-REDAC radio adapters
- Retrofittable with EMS-LORA radio adapters
- Retrofittable with EMS Wireless M-Bus radio adapters
- Retrofittable with EMS Wired M-Bus adapters, cable-based M-Bus
- Retrofittable with EMS pulse adapters in accordance with DIN 43864
All plastic components of the compact EMS base valve meter, type EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90, that come into contact with drinking water have been issued a test certificate in accordance with the Guideline for the Hygienic Assessment of Organic Materials in Contact with Drinking Water (KTW Guideline) and the DVGW Code of Practice W270. This confirms the suitability of the materials from a microbiological perspective.
In addition, all requirements of the new DVGW Code of Practice for the Drinking Water Ordinance, DIN 50930-6, are fulfilled.
The housing material of the EMS base valve meter, type MT-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90, also meets all requirements of the Positive List of the German Federal Environment Agency (UBA Positive List), as well as all requirements of the European 4MS Initiative (4MS Approach) concerning the suitability of the material for use with drinking water.

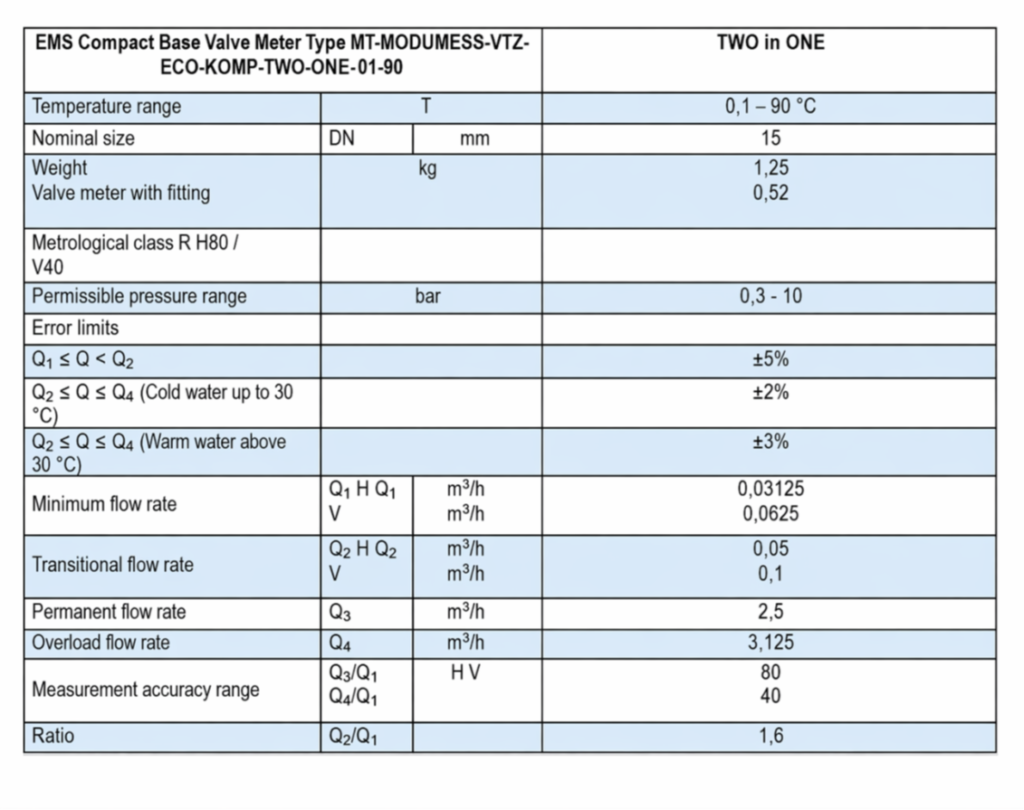

Technical Specifications of the EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90 Compact Mechanical Base Valve Meter

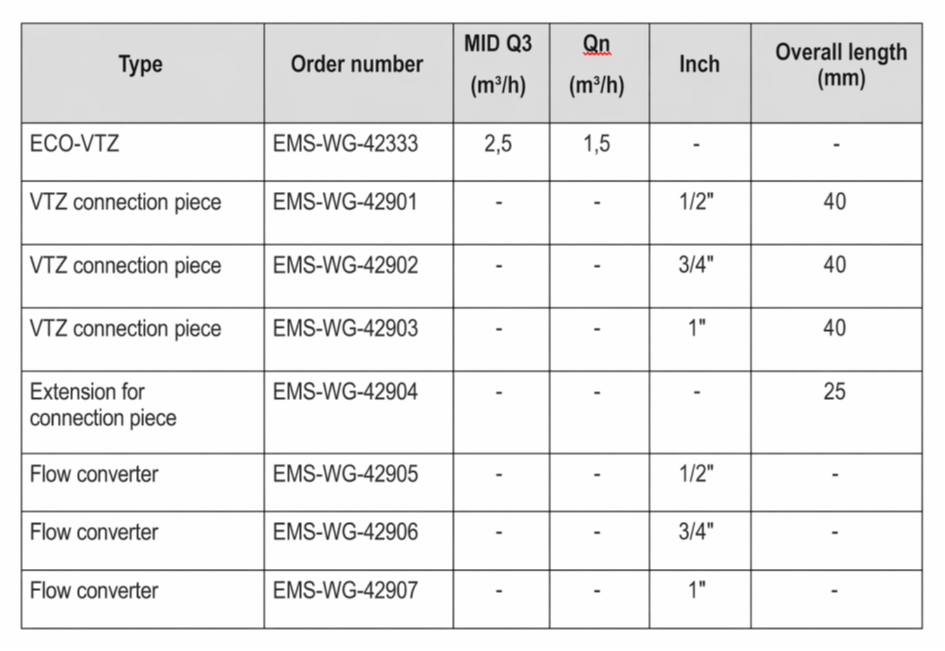

Device Sets or Individual Components for the EMS Base Valve Meter EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90

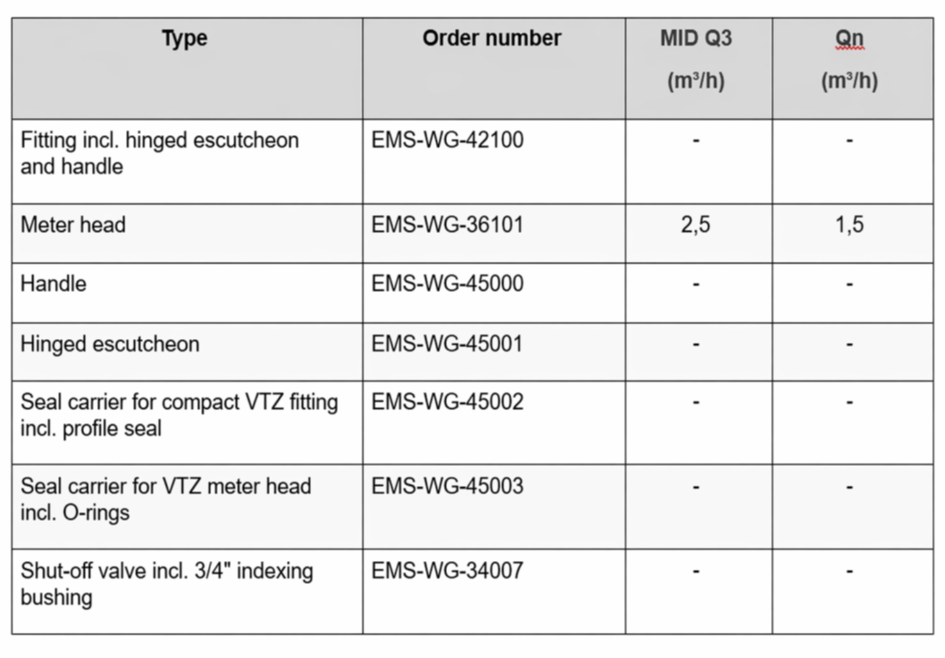

Device Sets or Individual Components for the EMS Base Valve Meter MT-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90
Pressure Loss Curve of the EMS Base Valve Meter EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90
Error Curve of the EMS Base Valve Meter EMS-MODUMESS-VTZ-ECO-KOMP-TWO-ONE-01-90
