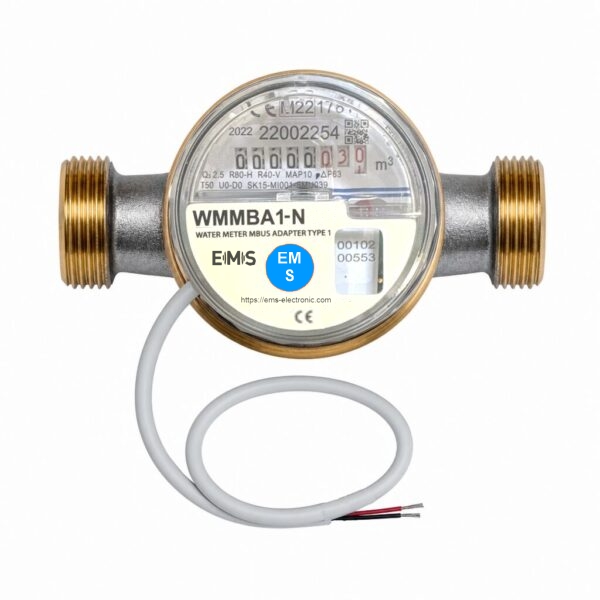

Surface-mounted apartment water meter with factory-installed M-Bus module EMS-ETW-ECO-WG-TWO-ONE-MODUMESS-MBUS
The M-BUS apartment water meter EMS-ETW-ECO-WG-TWO-ONE-MODUMESS-MBUS is a universal surface-mounted apartment water meter with a factory-integrated M-BUS adapter type EMS-WMMBA1-N, which is suitable for virtually any application.
The surface-mounted apartment water meter EMS-ETW-ECO-WG-TWO-ONE-MODUMESS-MBUS is the innovative all-rounder for precise and reliable water consumption measurement.
The EMS-ETW-ECO-WG-TWO-ONE-MODUMESS-MBUS is the ideal surface-mounted water meter for modern building management solutions. With a factory-integrated M-Bus module, this meter offers first-class connectivity to the modern, wired remote meter reading system M-Bus, making it particularly suitable for long-term use in complex building installations. Its future-proof design allows for easy integration into existing metering systems and provides precise and efficient billing of water consumption. Thanks to its high flexibility, the EMS-ETW-ECO-WG-TWO-ONE-MODUMESS-MBUS water meter is suitable for both horizontal and vertical installation, easily adapting to different building conditions. The meter’s robust technical features allow for operation in a temperature range of 0.1–90°C, making it suitable for a wide variety of applications – in both residential and commercial buildings. Modularity and retrofitability are key features of this meter – the factory-integrated M-Bus module can be replaced, if required, with a pulse module according to DIN 43864, a wireless M-Bus OMS radio module, a REDAC radio module, or a LORA radio module. This enables a customized solution for every requirement and ensures maximum flexibility in water consumption monitoring.
Advantages for property management companies and building managers:
- Efficient meter reading without special visits: The meter enables convenient and trouble-free remote reading via a wired M-Bus system, even in vacant apartments. This eliminates unnecessary on-site appointments and additional costs for property management companies.
- Optimized resource utilization: By eliminating the need to coordinate appointments for inaccessible apartments, administrative efforts are minimized, saving both time and money.
- Avoidance of consumption estimates: The EMS-ECO-WG-TWO-ONE-MODUMESS-MBUS ensures that water consumption estimates are no longer necessary thanks to its M-Bus remote reading capability – even when residents are not present. This ensures that billing remains accurate and transparent at all times.
- Precise and conflict-free billing: The accurate and continuous recording of water consumption throughout the year ensures fair and transparent billing and reduces disputes between tenants and landlords.
- Long-term investment: Thanks to its interchangeability with additional modules, the meter offers a sustainable solution that can be adapted to future requirements – thus ensuring your investment remains future-proof in the long term.
The EMS-ECO-WG-TWO-ONE-MODUMESS-MBUS is the perfect meter for modern properties that value efficiency, precision, and flexibility. With this device, you’re choosing a future-proof solution for your water consumption monitoring that not only saves costs but also significantly simplifies management.
The EMS-ECO-WG-TWO-ONE-MODUMESS-MBUS is the ideal meter for the precise measurement of cold and hot drinking water.
The meter is approved for a temperature range of 0.1–90°C and can therefore be used as either a cold water meter or a hot water meter.
It is marked as a cold water meter or a hot water meter with a red or blue sticker, respectively.
Thanks to its dry-running technology, it is suitable not only for private households but also for use in commercial buildings and industrial areas. With a wide range of models, the meter covers a variety of requirements and offers a reliable solution for both small and large installations.
High scanning reliability and flow direction detection
The inductive scanning of the modulation pointer via a coil by the electronic M-Bus adapter EMS-WMMBA-1-N ensures extremely reliable and synchronous counting on the M-Bus communication module. This module also features flow direction detection. In the event of negative flow direction (reverse flow), pulses are only transmitted again once the correct flow direction is established and the last count has been exceeded.
The M-Bus water meter EMS-ECO-WG-TWO-ONE-MODUMESS-MBUS is perfect for demanding applications.
Whether for private residences or larger commercial and industrial installations, the EMS-ECO-WG-TWO-ONE-MODUMESS-MBUS residential water meter offers reliable and precise water consumption measurement in every scenario. Combining innovative technology with practical modularity, this meter represents a long-term and future-proof solution for modern real estate and water management.
The mechanical base water meter type EMS-ECO-WG-TWO-ONE-MODUMESS forms the stable basis for the M-Bus water meter EMS-ECO-WG-TWO-ONE-MODUMESS-MBUS
The mechanical single-jet residential water meter type EMS-ECO-WG-TWO-ONE-MODUMESS forms the stable and reliable basis for the electronic M-Bus water meter EMS-ETW-ECO-WG-TWO-ONE-MODUMESS-MBUS.
As a fully dry-running mechanical meter with magnetic coupling for transmitting the rotary motion, it ensures precise and durable water consumption measurement.
This fully dry-running design keeps the measuring mechanism completely isolated from the water flow. This guarantees not only an exceptionally long service life but also exceptionally high measurement accuracy.
Dry operation prevents deposits and ensures that the meter functions reliably under all conditions.
The advanced magnetic coupling principle enables precise and secure transmission of the rotary motion without water ever entering the metering area. This technology ensures high wear resistance.
The precise transmission of the rotary motion from the measuring mechanism to the counter via magnetic coupling guarantees reliable measurement results at all times.
Flexibility and versatility thanks to the EMS-ECO-WG-TWO-ONE-MODUMESS mechanical base water meter
The EMS-ECO-WG-TWO-ONE-MODUMESS mechanical water meter is ideal for the precise measurement of cold and hot drinking water. Thanks to its dry-running technology, it is suitable not only for private households but also for use in commercial buildings and industrial areas. With a wide range of models, the meter covers diverse requirements and offers a reliable solution for both small and large installations.
However, its true advantage lies in its flexibility: This meter forms the basis for expansion to modern remote reading and communication technologies.
With its robust construction and excellent measuring accuracy, the EMS-ECO-WG-TWO-ONE-MODUMESS not only provides a reliable foundation for daily operation but also allows for the easy integration of an M-Bus module.
This M-Bus module (model EMS-WMMBA1-N) is already factory-installed, parameterized, and sealed in the EMS-ECO-WG-TWO-ONE-MODUMESS-MBUS model.
This transforms the meter into a powerful component of a networked, digital meter reading system. This future-oriented solution enables efficient, error-free, and cost-effective recording of water consumption – whether for private households, commercial buildings, or industrial applications.
Technical data of the mechanical basic meter (apartment water meter type EMS-ECO-WG-TWO-ONE-MODUMESS)
Metrological class R80-H / R50-V
Metrological class R80-H / R50-V

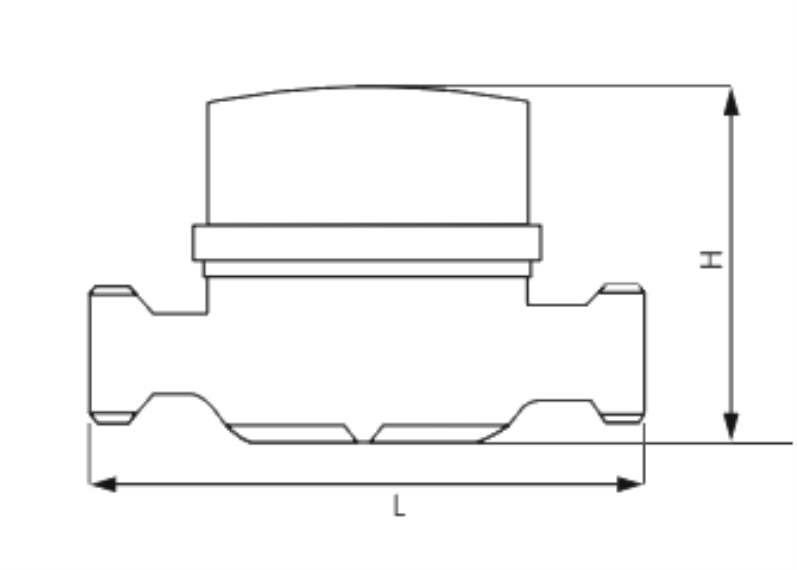

| Type: | Order No.. | Nominal size Q3, m³/h | Inch | Length L mm | Height H mm | Weight kg | EAN code |
| EMS-ECO-WG-TWO-ONE-MODUMESS | EMS-25200 | 1,6 | 1/2“ | 110 | 65 | 0,44 | 4029376252000 |
| EMS-25201 | 2,5 | 1/2“ | 60 | 65 | 0,44 | 4029376252017 | |
| EMS-25002 | 2,5 | 1/2“ | 80 | 65 | 0,42 | 4029376250020 | |
| EMS-25003 | 2,5 | 1/2“ | 110 | 65 | 0,46 | 402937625003 | |
| EMS-25005 | 4 | 3/4“ | 130 | 65 | 0,54 | 4029376250051 |
Metrological class R160-H / R63-V
| Type: | Order No.. | Nominal size Q3, m³/h | Inch | Length L mm | Height H mm | Weight kg | EAN code |
| EMS-ECO-WG-TWO-ONE-MODUMESS | EMS-21002 | 2,5 | 1/2“ | 80 | 65 | 0,44 | 4029376210024 |
| EMS-21003 | 2,5 | 1/2“ | 110 | 65 | 0,44 | 4029376210031 | |
| EMS-21005 | 4 | 3/4“ | 130 | 65 | 0,44 | 4029376210055 |
Pressure loss curve of the mechanical base meter EMS-ECO-WG-TWO-ONE-MODUMESS

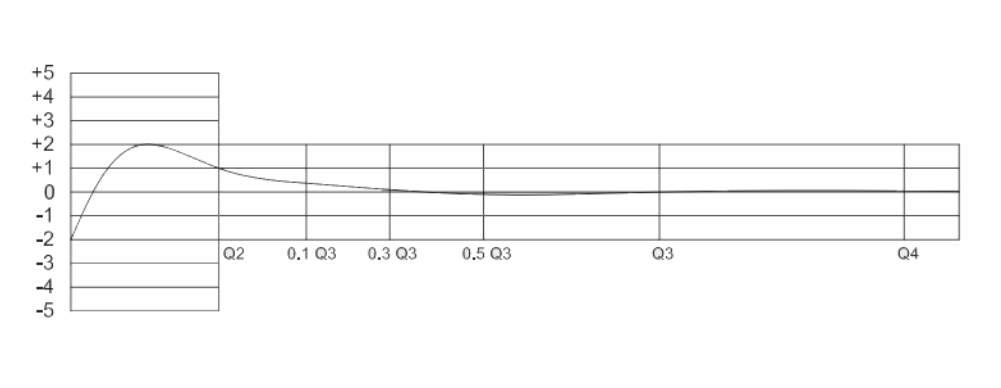

Error curve of the mechanical base counter EMS-ECO-WG-TWO-ONE-MODUMESS
Technical data and information about the surface-mounted apartment water meter with integrated M-Bus module type EMS-ETW-ECO-WG-TWO-ONE-MODUMESS-MBUS, already factory-installed wired M-Bus adapter type EMS-WMMBA1-N

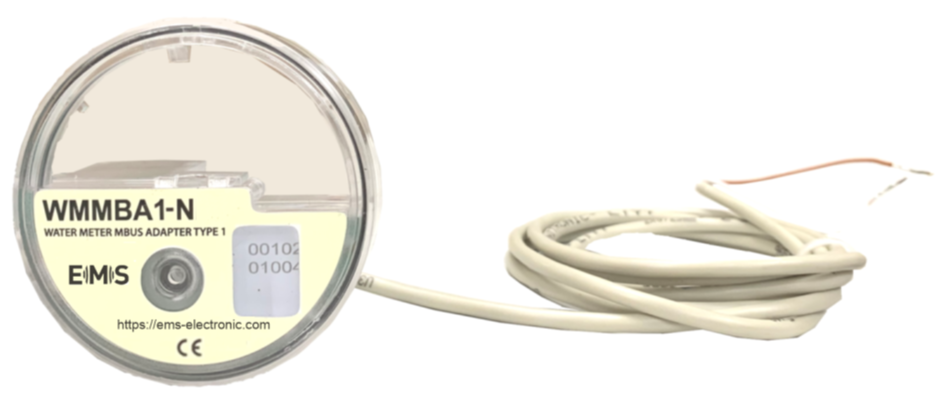

The EMS-WMMBA1-N M-Bus adapter for remote reading of Modumess water meters enables the convenient upgrade of existing systems and sets new standards in M-Bus technology and performance.

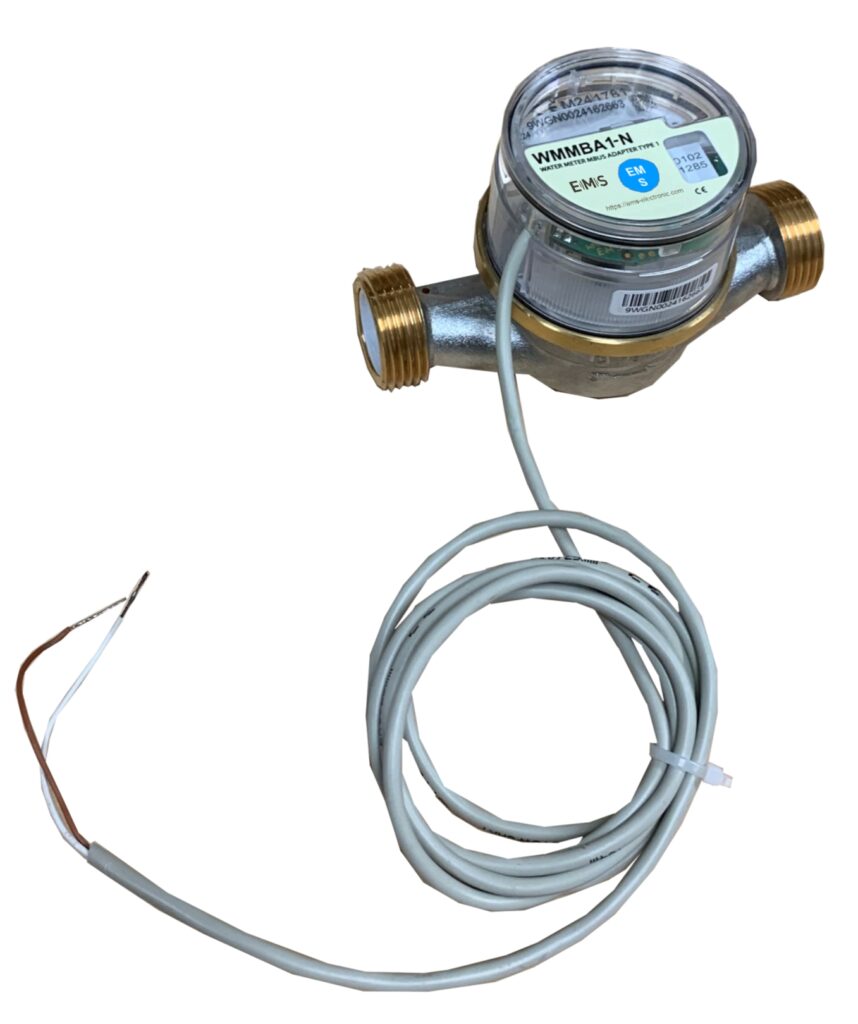

When operating on the M-Bus network, the EMS-WMMBA1-N M-Bus adapter is powered via the network. A built-in battery ensures continued metering even during brief M-Bus network outages. The M-Bus module is equipped with a 2-wire cable. The module connects to an M-Bus network via the brown and white wires.
The EMS-WMMBA1-N M-Bus adapter offers maximum flexibility in meter reading, allowing for multiple water consumption readings throughout the day. This provides more flexibility in planning consumption data collection and heating and operating cost billing. Even complex energy management systems, which often require daily updated consumption data, can be implemented this way.
Application of the compact M-Bus module type EMS-WMMBA1-N with inductive scanning for EMS Modumess water meters (with modular counter of type Modularis).
The EMS M-Bus adapter type EMS-WMMBA1-N consists of an electronic unit that inductively detects and stores the meter reading from the meter. The module transmits the meter number, meter reading, flow rate, and various operating information. This data is retrieved by an M-Bus master (for example, the EMS M-Bus central unit type MTMBUS-CE1 or the web-enabled M-Bus central units type Weblog-120 or Weblog-250). The EMS-WMMBA-1-N M-Bus modules are primarily designed for optimal reading of consumption and meter data via a wired M-Bus network.
Features:
- Inductive scanning protects against magnetic tampering
- Two reverse polarity protected output wires
- Flow direction detection
- Event log and alarms
- Compatible with M-Bus according to EN 13757
- IP 65
- Long service life of up to 20 years thanks to replaceable batteries or factory refurbishment.
Technical specifications of the EMS M-Bus module type EMS-WMMBA-1
| Parameters | Value |
| Service life | > 12 years |
| Backup battery | Varta lithium primary cell (Varta CR 1/2 AA) |
| Service life without M-BUS connection | approx. 2 years |
| Current consumption | < 1.5 mA (1 bus load) |
| Max. flow rate | 30,000 liters/h |
| Sensor disc scanning | Inductive sensing via coils |
| Flow/reverse detection | Synchronous to the counter, even during reverse flow |
| Data rate on the M-BUS | 2400 baud, switchable to 300 baud |
| Primary address | 0-250 (user-assignable) |
| Secondary address (ID/device number) | 0-8 digits (user-assigned) as serial number upon delivery |
| Merger number | 0-8 digits (user-assigned) as serial number upon delivery |
| Protection class | IP 65/IP 68 |
| Connection cable | 1 cable (2×0.25 mm² |
| Cable length | 1 m for IP 65, 2 m for IP 68 |
| Standards reference | Implemented protocols meet the requirements of EN 1434, EN 13757-2, EN 13757-3 |
| EMC | EN 55011, EN 61326-1, EN 61123-1, EN 61000-4-20, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6 |
| Test mark | CE |
| Installation position | Any |
