Bathtub water meter type EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90
Compact consumption measurement directly at the bathtub faucet with the EMS bathtub water meter type EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90

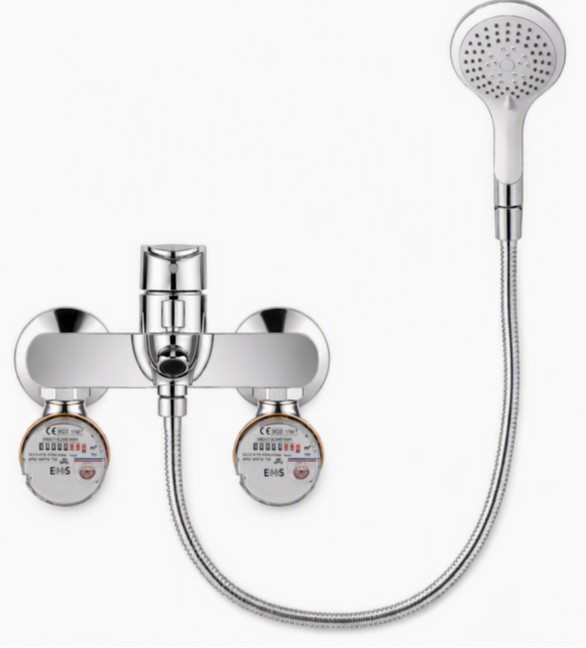

The EMS bathtub water meter, type EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90, is a compact and flexible solution for recording water consumption directly at the point of use. The EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 bathtub water meter is installed between the faucet and the water inlet, making it particularly easy to integrate into existing plumbing installations.

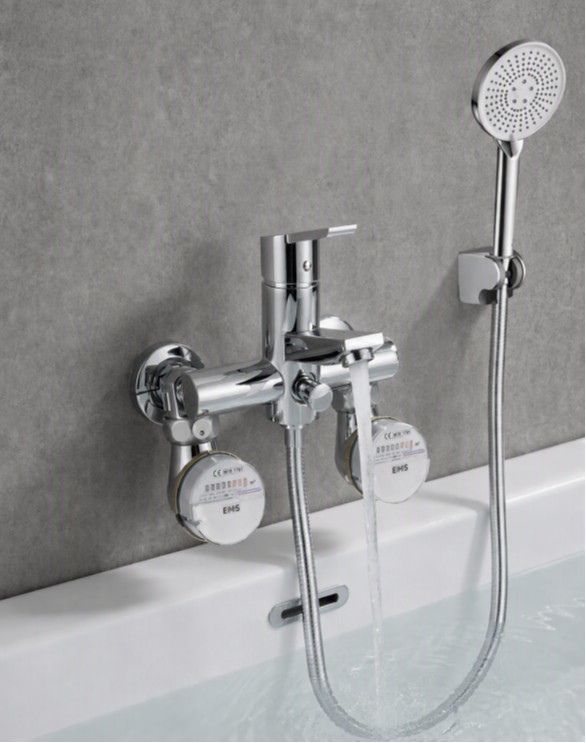

The combination of compact fitting, measuring head, and escutcheon unites a space-saving design with an attractive appearance. The chrome-plated meter housing and connection piece blend harmoniously into modern bathrooms. This makes the EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 bathtub water meter suitable for both new construction and retrofitting in existing buildings.
Easily retrofit and flexibly expand the EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 bathtub meter
A particular advantage of the EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 bathtub water meter is its easy on-site retrofit capability. The meter can be installed in the existing system using a suitable connector, without requiring extensive modifications to the entire water supply.
This type of meter therefore offers an excellent opportunity to retrofit apartments that have not yet been equipped with water meters without major renovation work.
Various modular systems are available for transmitting and analyzing consumption data. The bathtub water meter can be optionally equipped with or retrofitted with the following EMS adapters:
- EMS REDAC radio adapter
- EMS Wireless M-Bus radio adapter
- EMS LORA radio adapter
- EMS Wired M-Bus adapter
- EMS pulse output adapter
This allows the meter to be flexibly adapted to different building and reading concepts. The modular design also makes it possible to adapt existing installations to changing requirements at a later date.
Proven measuring principle with precise mechanical display
Flow measurement is performed using a hydraulic single-jet impeller sensor. As soon as water flows through the meter, the impeller is set in motion. The impeller’s revolutions are transmitted contactlessly to the mechanical counter via a magnetic coupling.

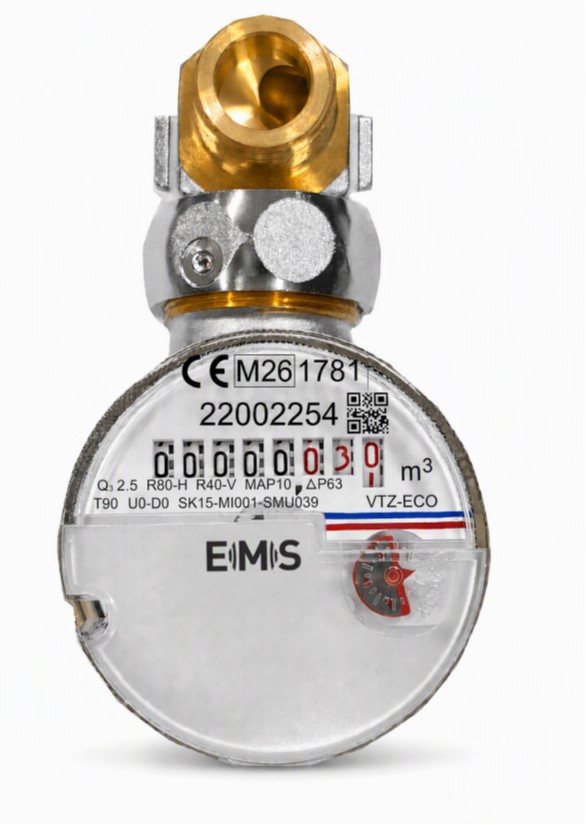

The measuring head of the EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 bathtub water meter is designed for dry operation. This keeps the counter separate from the water area and protects it with a transparent plastic cover. The consumption display consists of:
a visible flow indicator in the form of a rotating star
The display is designed for increments of 0.1 liters. One complete rotation of the pointer corresponds to a consumption of one liter. The rotating star in the center of the counter immediately indicates that water is flowing through the meter.
- an eight-digit roller counter
- an additional pointer
- a visible flow indicator in the form of a rotating star
Optimal readability in every installation situation
To ensure optimal readability of the EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 bathtub water meter, the counter can be rotated on its axis and positioned for easy viewing. This is particularly helpful in confined spaces or installations where flexible positioning is required.
The clearly visible display under the transparent plastic cover allows for quick manual monitoring of water consumption. Simultaneously, the consumption data can be transmitted to a higher-level reading system via the integrated radio, M-Bus, or pulse module.
Suitable for residential and non-residential buildings
The EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 bathtub water meter is suitable for recording consumption in various water supply systems and building types. Typical applications include:
- Process water systems in residential and non-residential buildings
- Various types of water supply systems
- Apartment buildings
- Office and administration buildings
- Sanitary rooms in commercial properties
- Modernization and renovation projects
- Buildings with decentralized consumption recording
Typical users are:
- Private building owners
- Housing cooperatives
- Property management companies
- Building service and facility management companies
- Residential and commercial property operators
Compact design for installation between the fitting and the inlet

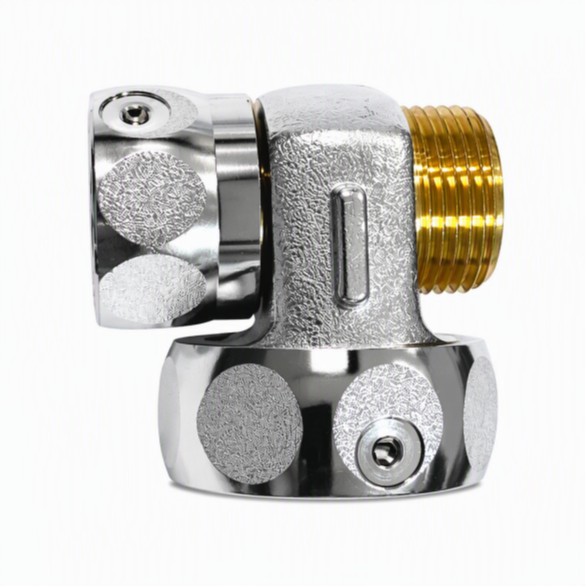

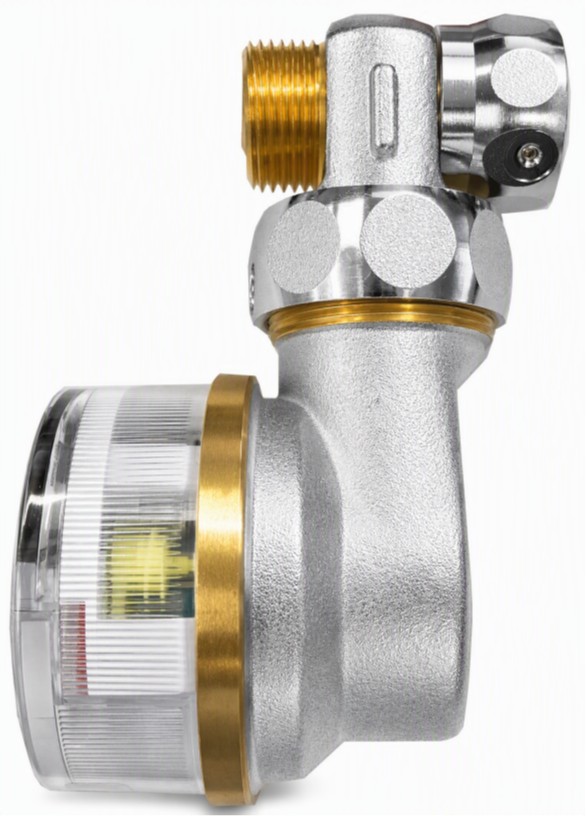

The EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 bathtub water meter was specifically designed for installation between the faucet and the water inlet. Its compact design allows for space-saving integration. The system essentially consists of a hydraulic impeller sensor, a mechanical counter, and the appropriate connector for installation in the existing plumbing.#
The meter housing and connector are chrome-plated, creating a robust and high-quality finish that blends seamlessly into various bathroom designs. The included escutcheon ensures a clean finish in the visible installation area.
MID-approved and suitable for a wide temperature range
The EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 bathtub water meter is MID-approved and therefore suitable for legally required calibration applications. Its temperature range of 0.1 to 90 °C allows for use in various cold and hot water applications.
Your advantages at a glance:
- Compact bathtub water meter for installation between the faucet and the inlet
- Combinationof compact faucet, measuring head, and escutcheon
- Easy on-site retrofit
- Chrome-plated meter housing and connection fitting
- Mechanical consumption display with eight-digit roller counter
- Additional pointer for consumption indication
- Display scale in 0.1-liter increments
- One pointer rotation corresponds to one liter
- Visible flow indicator via a rotating star
- Rotating counter for convenient reading
- Optionally available with radio, M-Bus, or pulse module
- Supports various wireless systems for remote reading
- Supports several wired remote reading systems
- Compatible BWZ measuring head
- MID-approved
- Temperature range from 0.1 to 90 °C
- Suitable for residential and non-residential buildings

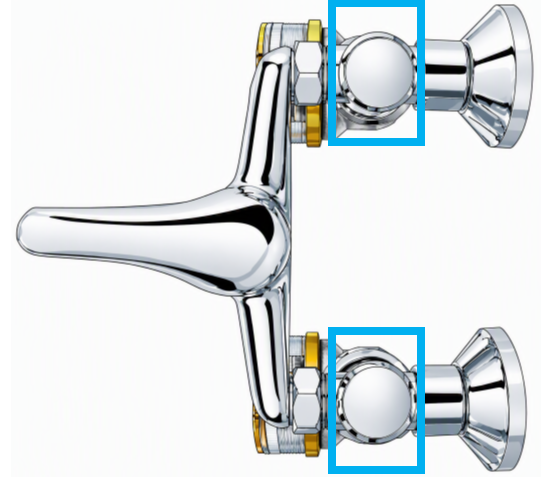

The EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 bathtub water meter is installed between the bathtub faucet and the water wall outlet (inlet).
A flexible solution for modern consumption recording
The EMS bathtub water meter EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 combines a compact design with a clear mechanical display and flexible options for electronic data transmission. Its simple installation between the faucet and the water inlet makes the system particularly suitable for retrofitting in existing installations.
Whether manual reading, radio transmission, M-Bus communication or pulse output: The bathtub water meter EMS-MODUMESS-BWZ-ECO-
TWO-ONE-01-90 can be adapted to different requirements and can be expanded modularly if necessary.
The EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 bathtub water meter stands for tested drinking water hygiene and high measuring accuracy.
The EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 bathtub water meter combines reliable consumption measurement with a high-quality, drinking water-compatible design.
It was developed for use in drinking water installations and meets stringent requirements for hygiene, material quality, and measurement accuracy.
All plastic components that come into contact with drinking water have the corresponding test certificate in accordance with the KTW guideline for the hygienic assessment of organic materials in contact with drinking water. In addition, the materials are evaluated according to the DVGW standard W270. This confirms their suitability from a microbiological perspective and supports safe use in drinking water applications.
The brass housing of the water meter also meets the requirements of the new DVGW regulations in conjunction with DIN 50930-6. The chrome-plated housing with its internal brass section is manufactured in accordance with the specifications of the German Federal Environment Agency.
The meter’s material composition also complies with the specifications and guidelines of the European 4MS Initiative (4MS Common Approach), and the meter’s materials are approved for use with drinking water in the European 4MS Initiative (4MS Common Approach) positive list.
The chrome-plated surface gives the EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 bathtub water meter a high-quality and attractive appearance. At the same time, the housing blends harmoniously into
modern bathrooms and existing bathroom fixtures. The robust construction is suitable for continuous use in various drinking water installations.
Precise consumption measurement with the bathtub water meter EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90
The EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 bathtub water meter impresses with its high measuring accuracy. The standard version achieves a measuring range of up to R 100. Upon request, the meter is also available in a version with a measuring range of up to R 160.
This allows even varying flow rates to be reliably recorded. The meter is particularly suitable for applications where precise and traceable water consumption monitoring is required.
The EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 bathtub water meter is suitable for modern drinking water installations.
Thanks to its tested material quality, hygienically suitable design and precise measuring technology, the EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 bathtub water meter is suitable for various applications. These include apartments, multi-family homes, residential complexes, and other buildings with decentralized consumption monitoring.
The combination of dry-running technology, a chrome-plated housing, and drinking water-safe materials provides a reliable foundation for long-term use. At the same time, its compact design allows for easy integration into existing plumbing installations.
The EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 bathtub water meter offers quality you can trust in the drinking water sector.
The bathtub water meter type EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90 stands for safe material selection, hygienic suitability and precise consumption recording. With tested plastic materials, a robust brass design and a chrome-plated housing, it meets the essential requirements for modern drinking water meters.

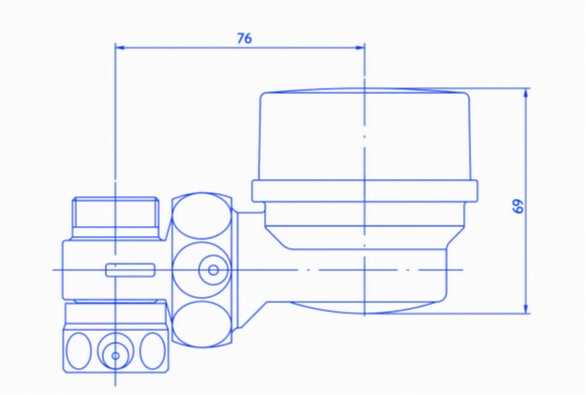

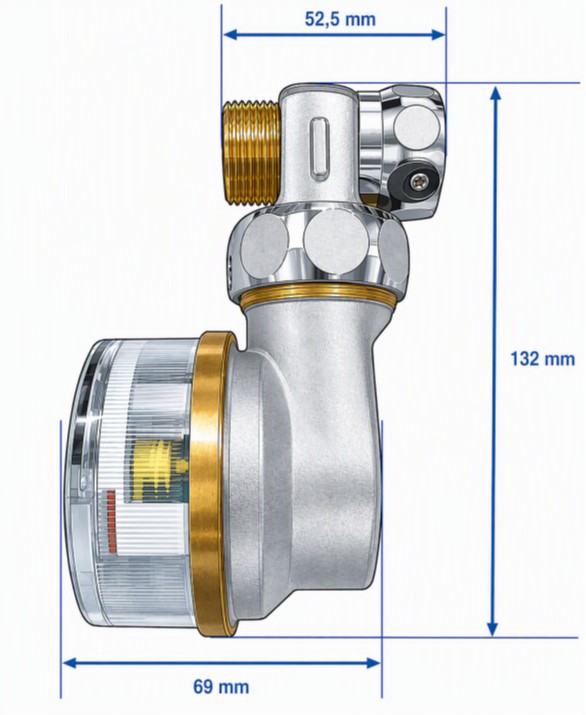

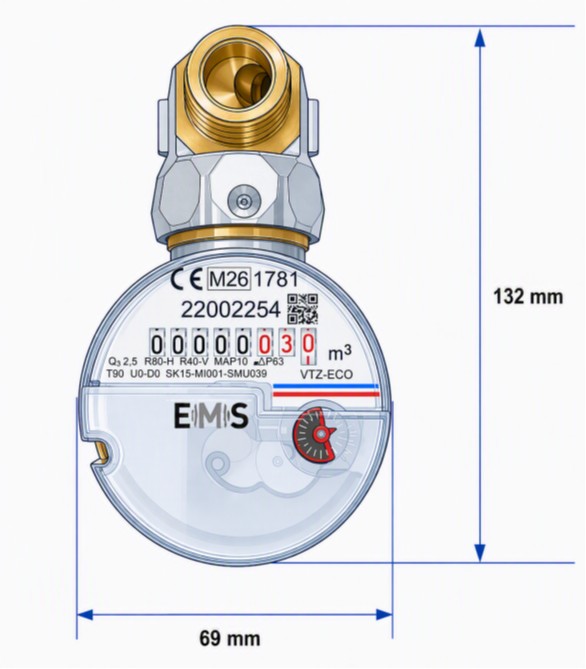

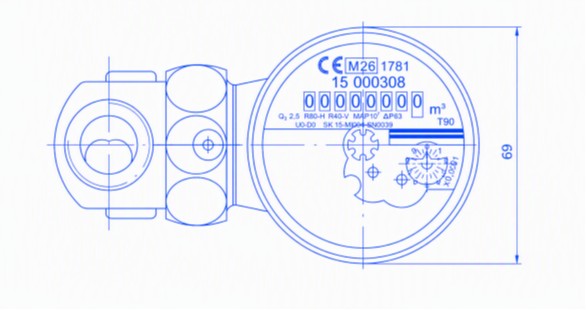

Dimensions of the bathtub water meter MT-MODUMESS-BWZ-ECO-TWO-ONE-01-90

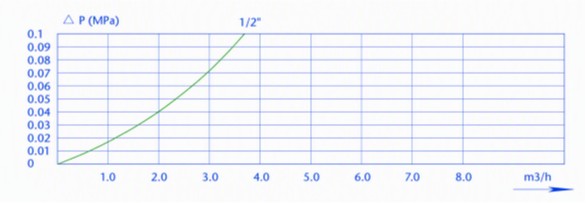

Pressure loss curve of the bathtub water meter type MT-MODUMESS-BWZ-ECO-TWO-ONE-01-90

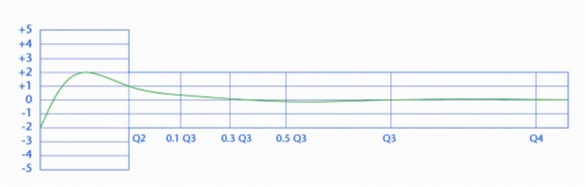

Error curve of the bathtub water meter type MT-MODUMESS-BWZ-ECO-TWO-ONE-01-90

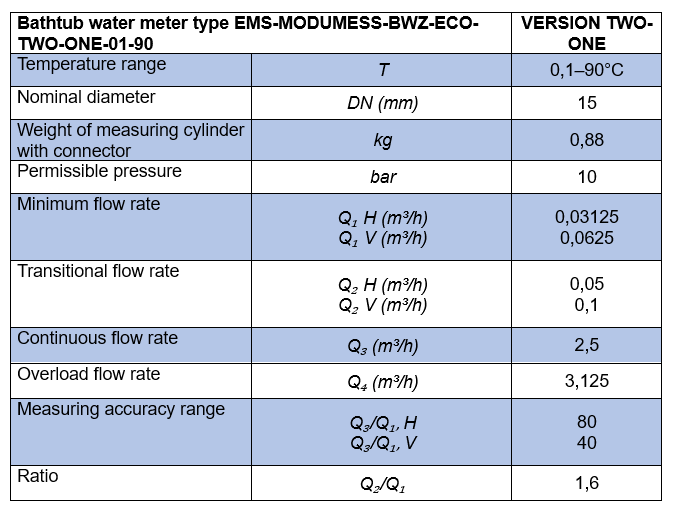

Technical data of the bathtub water meter type EMS-MODUMESS-BWZ-ECO-TWO-ONE-01-90
